Marine Pumps
March Pumps
Originator of the Centrifugal Sealless Magnetic Drive Pump.
Liquid Cooled Pumps | Air Cooled Pumps | Mini Pumps
March Liquid Cooled Pumps
These legendary pumps have epoxy encapsulated motors through which the pumped water flows in a copper nickel tube which cools the components.
The unique seal-less pump end features an orbital magnetic drive on a ceramic shaft with a ceramic thrust washer. These pumps are explosion proof and can run submerged or in the open air.
LC-2CP-MD 300 GPH
LC-2CP-MD 300 GPH
LC-3CP-MD 510 GPH
LC-3CP-MD 510 GPH
LC-5CP-MD 870 GPH
LC-5CP-MD 870 GPH
Specifications and Our Discount Prices
For the LC 3 add 30%, and the LC 3&5 add 20% for 230 volt
Model
Connections
inlet/outlet
Watts
@115v
Amps
@115v
GPH
@1'
GPH
@3'
GPH
@5'
GPH
@6'
GPH
@12'
GPH
@18'
Max
head
H
W
L
Ship wgt
List price
Our Price
Includes Shipping*
LC-2CP-MD
3/4" / 1/4"
60
1.1
300
260
210
195
45
-
13'
4"
4-1/4"
6"
5lbs
$328.00
$249.60
Buy Now
LC-3CP-MD
3/4" / 1/2"
120
2.35
510
490
405
385
180
120
19.5'
4-3/4
4-1/4
7-25
6.5lbs
$360.00
$272.00
Buy Now
LC-5C-MD
1" / 1/2"
195
3.4
900
870
820
690
555
395
21
7-1/16
5-7/16
9-13/16
5.5lbs
$870.00
$639.00
Buy Now
Prices include mounting bracket.
*Our Price INCLUDES SHIPPING to anywhere in the USA, Puerto Rico and the USVI,
$38.95 to anywhere in Canada, $69.95 worldwide by US International Priority mail.
Prices FOB Stuart, FL. Pumps shipped to a Florida address only must add 6.5% sales tax

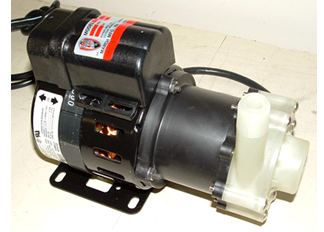

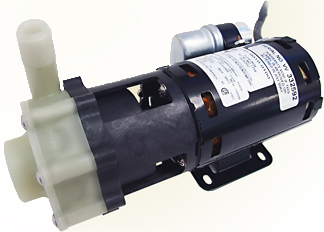

March Air Cooled Pumps
Open air, thermally protected and moisture protected motors. The unique sealless pump end features an orbital magnetic drive on a ceramic shaft with a ceramic thrust washer.
AC-3CP-MD 630 GPH
AC-3CP-MD 630 GPH
AC-5CP-MD 1080 GPH
AC-5C-MD 1080 GPH
TE-5.5C-MD 1620 GPM
TE-5.5C-MD 1620 GPM
AC-4C-MD
AC-4C-MD
Specifications - Smaller Capacity Pumps
Model
Connections inlet/outlet
Watts @115v/230v
Amps @115v/230v
GPH @1'
GPH @3'
GPH @6'
GPH @12'
GPH @18'
max head
H
W
L
Ship wgt lbs/kg
AC-3CP-MD
3/4" / 1/2"
150
2.1/1.05
630
582
528
390
180
20.5'
4-3/4
4
8-1/4
7 lbs/3.18
AC-4C-MD
1"/1/2"
172
1.75/.87
840
786
720
564
360
21.5
5-1/4
5-1/4
9-3/4
8 lbs/3.7
AC-5C-MD
1" / 1/2"
227
2.2/1.1
1080
978
900
750
570
26
6-3/16
4-1/2
9-1/8
8 lbs/3.7
Larger Capacity March Air Cooled Pumps
Model
Inlet
Outlet
HP
Volts
Amps
GPH
@1'
GPH
@10'
GPH
@20'
GPH
@30'
max
H
W
L
Ship wgt lbs/kg
TE-5.5C-MD
1"
3/4"
1/3
115/230
3.6/1.8
1620
1380
1128
900
41
8-9/16"
7-7/16"
14-7/16"
35/15.9
TE-6T-MD
1"
3/4"
1/2
115/230
8.8/4.4
2280
2100
1920
1560
49
7.79
6.54
15.14
34.5/15.5
TE-7R-MD
1.5"
1"
3/4
115/230
10.0/5.0
3180
3060
2760
2400
60
8.94
8.96
17.81
38.5/17.5
TE-7.5P-MD
2"
1.5"
2
230/460
5.2/2.6
5110
5040
4920
4680
85
10
9.53
19.58
53/24
TE-8C-MD
2"
1.5"
3
230/460
7.8/3.9
5160
5100
5040
4920
95
10.86
10.86
12.73
160/72.5
TE-10K-MD
3"
2"
10
230/460
27/13.5
9600
9540
9480
9360
160
13.32
13.94
30.74
260/118

Specifications and Our Discount Prices - March AC series pumps
For the AC 3 add 30%, and the AC 4&5 add 20% for 230 volt
 Model
List Price
Our Price
Includes Shipping*
AC-3CP-MD -115V
$231.00
$181.70
Buy Now
AC-4C-MD - 115
$338.00
$256.60
Buy Now
AC-5C-MD - 115V
$346.00
$290.90
Buy Now
TE-5.5C-MD -115/230 - 50/60HZ
$634.00
$473.80
Buy Now
TE-6T-MD - 115/230V
$799.00
$601.30
Buy Now
TE-7R-MD - 115/230V
$834.00
$618.80
Buy Now
TE-7.5P-MD - 230/460 3 phase
$2,498.00
$1,783.00
TE-8C-MD - 230/460 3 phase
$2,900.00
$2,050.00
TE-10K-MD. - 230/460 3 phase
$4,920.00
$3,464.00
Prices include mounting bracket.
*Our Price INCLUDES SHIPPING to anywhere in the USA, Puerto Rico and the USVI,
$38.95 to anywhere in Canada, $69.95 worldwide by US International Priority mail.
Prices FOB Stuart, FL. Pumps shipped to a Florida address only must add 6.5% sales tax

893 Series March Mini Pumps 12 & 24 Volt DC
Models 893-03, 893-05
Models 893-03, 893-05
Models 893-04, 893-06
Models 893-04, 893-06
Models 893-07, 893-08
Models 893-07, 893-08
Models 893-09, 893-10
Models 893-09, 893-10
Specifications - Pumps with Brush DC Motor
Model
Submersible/
non-submersible
HP
Connections
inlet/outlet
volts
watts
amps
GPH @1'
GPH @3'
GPH @5'
GPH @6'
GPH @11'
Max head
H
W
L

Ship wgt
lbs.kg

893-03
non-
submersible
1/150
3/8 FPT-3/8 OD
12
12
1
167
143
118
105
0
11'
2.59
2.81
5.13
1 lbs/
0.45 kg
893-04
submersible
1/150
3/8 FPT-3/8 OD
12
12
1
167
143
118
105
0
11'
2.59
2.81
5.13
1.2 lbs/
0.55 kg
893-05
non-
submersible
1/150
3/8 FPT-3/8 OD
24
12
1/2
167
143
118
105
0
11'
2.59
2.81
5.13
1 lbs/
0.45 kg
893-06
submersible
1/150
3/8 FPT-3/8 OD
24
12
1/2
167
143
118
105
0
11'
2.59
2.81
5.13
1.2 lbs/
0.55 kg
Specifications - Pumps with Brushless DC Motor
Model
Submersible/
non-submersible
HP
Connections
inlet/outlet
volts
watts
amps
GPH @1'
GPH @3'
GPH @5'
GPH @6'
GPH @11'
Max head
H
W
L

Ship wgt
lbs.kg

893-07
non-
submersible
1/150
3/8 FPT-3/8 OD
12
12
1
167
143
118
105
0
11'
2.97
2.38
4.47
1 lbs/
0.45 kg
893-08
non-
submersible
1/150
3/8 FPT-3/8 OD
24
12
1/2
167
143
118
105
0
11'
2.97
2.38
4.47
1 lbs/
0.45 kg
893-09
submersible
1/150
3/8 FPT-3/8 OD
12
12
1
167
143
118
105
0
11'
2.97
2.38
4.47
1.2 lbs/
0.55 kg
893-10
submersible
1/150
3/8 FPT-3/8 OD
24
12
1/2
167
143
118
105
0
11'
2.97
2.38
4.47
1.2 lbs/
0.55 kg
Discount Prices -
893 Series March Mini Pumps

Pumps shipped to a Florida address only must add 6.5% sales tax
Model
List Price
Our Price
Includes Shipping*
893-03
$190.00
$144.95
Buy Now
893-04
$314.00
$231.80
Buy Now
893-05
$186.00
$142.20
Buy Now
893-06
$265.00
$197.50
Buy Now
893-07
$288.00
$171.60
Buy Now
893-08
$260.00
$193.80
Buy Now
893-09
$324.00
$223.80
Buy Now
893-10
$324.00
$223.80
Buy Now


*Our Price INCLUDES SHIPPING to anywhere in the USA, Puerto Rico and the USVI,
$38.95 to anywhere in Canada, $69.95 worldwide by US International Priority mail.
Prices FOB Stuart, FL. Pumps shipped to a Florida address only must add 6.5% sales tax

Visa - MasterCard - Discover
We Ship Anywhere!
For more information call:
800-316-6426
Scot Pumps
Over 50 Years Building Large Capacity Pumps for All Applications, Up To 450 gpm.
Manufactured in Fort Lauderdale, Florida.

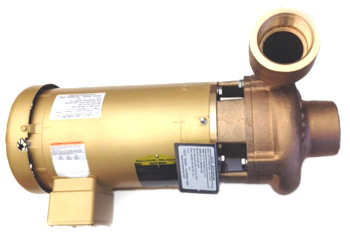

57121 Seawater Marine Pump

Pump
Heavy-duty marine pump has a cast Bronze alloy 954 sleeve over the 316 stainless steel motor shaft as standard . Optional Style X with stub shaft is available. Use this pump for Sea water, Bilge water, or Fresh water. Precision machined to close tolerances for consistent performance. Hardware - External - Type 300 stainless steel Internal – Type 316 stainless steel Enclosed impeller for solids to 5/8 inch Designed for continuous 24 / 7 operation.
Shaft Seal
Rated at 125 PSI Buna rubber parts, ceramic stationary element, carbon rotating element, seawater stainless steel spring and metal components
Motor
Totally enclosed fan cooled IP-44 motors meet marine, European, and Coast Guard ignition protected requirements. The motor is a special Marine design with a type 316 stainless steel shaft extension friction welded to the steel motor shaft. NEMA Premium Efficiency design with efficiency ratings to 90 ± 1.5 %. Sealed ball bearings Single phase motors must be ordered specifically for either 50 Hz or 60 Hz. Single-phase capacitor start 50 Hz – 110-220 Volt 60 Hz – 115-230 Volt Three-phase – nine lead dual voltage 50 Hz – 190/380 Volt

Scot Pumps

Model
Size
Dia.
HP
Voltage
Encl
Speed
Price
57121
2.5" x 2.5" NPT
450
3.0
3/60/208-230/460
TEFC
3500
$3,129.95
57121
2.5" x 2.5" NPT
475
5.0
3/60/208-230/460
TEFC
3500
$3,774.95
57121
2.5" x 2.5" NPT
513
7.5
3/60/208-230/460
TEFC
3500
$3,964.95
57121
2.5" x 2.5" NPT
562
10.0
3/60/208-230/460
TEFC
3500
$4,419.95
Calvert Engineering "CalPump"
Used for decades as a commercial fountain pump, the marine version of this pump is ideal for a wet bilge where moisture and explosive fumes may be a hazard - typically used as a continuous duty marine a/c pump.
Always mount this pump with the volute pointing down or to the side as shown to lubricate and cool the shaft. If the discharge barb is positioned as shown, air is more easily purged.
Like all centrifugal pumps they are not self priming and must be mounted below the waterline.
We suggest using full flow hose barbs so as to not restrict the flow. If you wish to throttle down the flow, never restrict the suction side of a centrifugal pump - this may cause impeller damage. You may restrict the discharge side to reduce flow at will.From 320-1200 GPM in 115 or 230 volt.
Cal-Marine "MS" series
Cal-Marine "MS" series:
These quality direct drive, centrifugal marine pumps feature a rugged bronze/stainless casing, an easily replaced nylon impeller mounted on a 304 stainless shaft with a hard chrome plate and a double lip viton seal, all inside a heavy duty nylon volute.
Specifications and Our Discount Prices
Cal MS Series Pumps
GPH (gallons per hour) specifications are at 115 volt & 230 volt 60 Hz - 50 Hz operation has slightly less GPH output (about 18%).
Model
Volts
HP
Amp
GPH@1'
GPH@3'
GPH@5'
GPH@9'
GPH@13'
MSRP
Our Price
Includes Shipping*
MS320-6 115V
115
1/40
1.5
320
260
200
140
-
$202
$147.26
Buy Now
MS320-6 220V
220
1/40
.9
270
210
160
120
-
$224
$151.67
MS580-6 115V
115
1/15
2.5
580
425
390
320
260
$306
$212.78
Buy Now
MS580-6-2B
220
1/15
1.3
490
350
330
260
-
$330
$215.93
MS900-6 115V
115
 1/12
2.6
900
720
620
425
390
$331
$228.53
Buy Now
MS900-6 220V
220
1/12
1.4
750
600
520
350
320
$350
$231.68
Buy Now
MS1200-6 115V
115
1/9
3.3
1200
980
840
660
540
$361
$247.43
Buy Now
MS1200-6 220V
230
1/9
1.5
1000
820
700
450
260
$377
$251.21
Prices include mounting bracket. Add $14.95 for hose barbs.
*Our Price INCLUDES SHIPPING to anywhere in the USA, Puerto Rico and the USVI, $38.95 to anywhere in Canada,
$69.95 worldwide by US International Priority mail.
Prices FOB Stuart, FL. Pumps shipped to a Florida address only must add 6.5% sales tax
Visa - MasterCard - Discover
We Ship Anywhere!
For more information call:
800-316-6426
Franklin Electric Pumps
These self priming cast iron pumps are designed to handle liquid fertilizer such as concentrated nitrogen phosphorous solutions. The viton and stainless steel seal will handle most agriculture and weed control chemicals. The BSEF pumps are also excellent for general dewatering purposes.
Cal-Marine "MS" series
The FBSEF series:
CASING - Made of rugged cast iron with large chamber for rapid self priming.
PRIMING PLUG - Fits the standard garden hose for easy priming.
MOTOR - The BSEF pump comes with reliable industry standard Totally Enclosed Fan Cooled (TEFC) motor.
IMPELLER - Semi-open, cast iron impeller, ideal for handling fertilizer, dirty water or other liquids. The impeller is blind hole tapped so liquid will not corrode the motor shaft.
MECHANICAL SEAL - Made of stainless steel with viton bellows.
Specifications and Our Discount Prices
Franklin Electric FBSEF Series Pumps
Model
HP
Volt
Suction x Discharge
Manufacturer No.
Weight
FBSEF-150-SC
1.5
115/230
1-1/4" x 1-1/4"
92932015
52
FBSEF-200-SC
2
115/230
2"x2"
92932020
60
FBSEF-300-SC
3
115/230
2"x2"
92932030
71
FBSEF-500-SC
5
230
3"x3"
92932050
165
FBSEF-300-TC
3
208-230/460
2"x2"
92934030
77
FBSEF-500-TC
5
208-230/460
3"x3"
92934050
148
FBSEF-750-TC
7.5
208-230/460
3"x3"
92934075
148

PERFORMANCE CHART
Model No.
RPM
HP
Total Head in Feet
20
30
40
50
60
70
80
Capacities in U.S. GPM
FBSEF-150
3450
1.5
74
70
62
35
10
-
-
FBSEF-200
2
97
86
66
44
21
-
-
FBSEF-300
3
138
130
120
100
79
55
25
FBSEF-500
5
265
235
205
165
120
75
20
FBSEF-750
7.5
290
270
245
215
170
120
70

Model
HP
List Price
Our Price
Includes Shipping*
FBSEF-150-SC
1.5
$1,491.00
$1,308.60
Buy Now
FBSEF-200-SC
2
$1,591.00
$1,389.66
Buy Now
FBSEF-300-SC
3
$2,016.00
$1,734.17
Buy Now
FBSEF-500-SC
5
$3,542.00
$2,971.15
Buy Now
FBSEF-300-TC
3
$2,108.00
$1,808.74
Buy Now
FBSEF-500-TC
5
$2,720.00
$2,304.83
Buy Now
FBSEF-750-TC
7.5
$3,049.00
$2,571.52
Buy Now

*Our Price INCLUDES SHIPPING to anywhere in the USA, Puerto Rico and the USVI,
$49.95 to anywhere in Canada, $69.95 worldwide by US International Priority mail.
Prices FOB Stuart, FL. Pumps shipped to a Florida address only must add 6.5% sales tax
Visa - MasterCard - Discover
We Ship Anywhere!
For more information call:
800-316-6426

5 Things to Know Before Buying a Marine Air Conditioning Pump
If replacing a pump with the exact same pump model and the unit or units were operating correctly, you may not be interested in this information. However, for those of us who find that the previous owner did not always do things correctly, this may help.
Most marine A/C pumps are not self-priming they are known as flooded volute pumps. They must be mounted below the waterline and above the strainer to prevent air locks.

1 - How many BTU’s are you needing to cool?
For every 12,000 BTU’s (1 Ton) you need 3 gallons of Seawater a minute delivered to the A/C unit. So, a 16,000 BTU unit would need 4 gallons a minute or 240 gallons per hour.
2 - What is the maximum rise in the discharge hose?
This starts our baseline measurement. Start by measuring the height distance. Between pump and the unit say 3 feet. Now add in about 6 inches per gradual bend and 1 foot for a hard 90-degree turn. Let’s say we have 3 bends and one ninety. Or 2.8 feet rounding off we see we have 6 foot of head. A Tee fitting will add 1.5 feet of head pressure
Using this chart as an example you can see we have lost some flow because of this.
chart
Note in the chart above it lists the inlet and water outlet sizes as well.

3 - What is the size of the thru-hull and suction line?
You want to match or go one size higher than the inlet to your pump with your suction hose. Never ever starve or reduce the suction side of a pump below the size of the volute intake size.
4 - What is the size of the pump discharge?
The discharge side of a pump does not mean that is the size of the hose or tubing you will want to run to your units. Size of the hose effects flow: you can increase flow by increasing the pipe size of your trunk line and then reducing the main trunk line at the unit itself.
5 - What voltage is the pump and at what hertz does it operate on?
220 volts hertz is important as most pumps run 20 percent less efficient than they would at 60 hertz.

With that information, you should be able to make the correct decision

Questions? Our Customer Service & Tech Support Team is Here to Help
800-316-6426 | sales@flagshipmarine.com

Flagship Marine, Inc., 2427 SE Dixie Hwy., Stuart, Florida 34996 - USA
Phone: 772-283-1609 Fax: 772-283-4611 Wats: 800-316-6426 sales@flagshipmarine.com

Copyright © 1995-2018 Flagship Marine, Inc. All Rights Reserved
